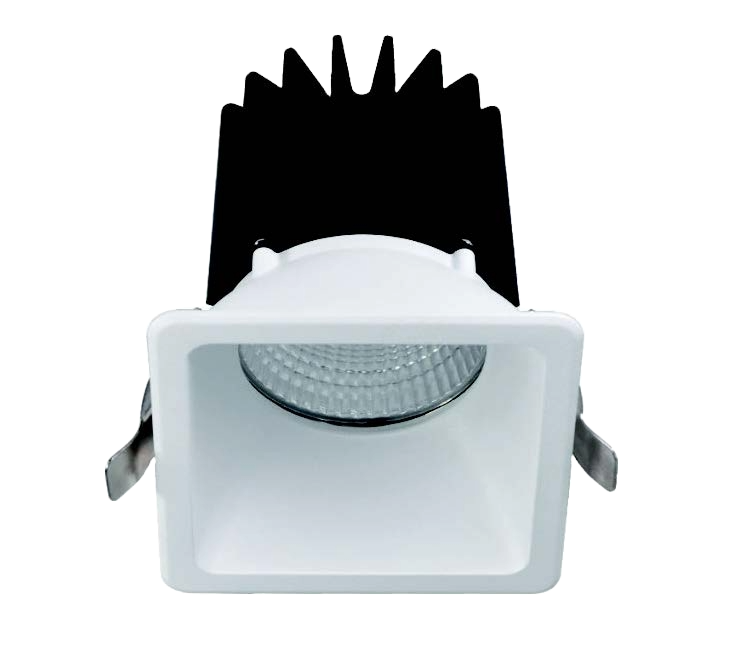

AES101SCT
LED Down Light Spot Family
IP20
30W
Approvals
Approvals & Standards
Saudi Standard SASO 2902 | Energy Efficiency, Functionality & labeling requirements for lighting products -Part2- |
|---|---|
IECEE Certificate | As per IEC60598-2-3:2002+A1:2011 IEC60598-1:2014+A1:2017 |
Power Supply approval marks | UL/CSA/CE/ENEC/CCB/CCC |
Degree of protection provided by enclosures, ingress protection(IP) | IEC 60529:2013 |
Cutout & Dimensions
| Model | Power | Dimension | Cutout |
|---|---|---|---|
| AES101SCT055 | 8W | L65xW65xH60mm | L55xW55mm |
| AES101SCT075 | 10W | L85xW85xH74mm | L75xW75mm |
| AES101SCT075 | 15W | L85xW85xH94mm | L75xW75mm |
| AES101SCT095 | 30W | L105xW105xH108mm | L95xW95mm |
Product Description
Use high-performance COB LED, Ra>80. Aluminum heatsink and unique die casting
heatsink design ensure better heat dissipation, Suitable for 5~18mm thick ceiling board
Technical Information
| Family | SPOT |
|---|---|
| Wattage | 8W | 10W | 15W | 28W |
| CRI | 80 | 90 |
| CCT | 2700K | 3000K | 3500K | 4000K | 5000K | 5700K | 6000K | 6500K |
| Luminous Flux | > 650lm 850lm 1275lm 2380lm |
| Beam | 15° | 24° | 38° | 60° |
| Finish | Black | White |
| Material | Die-casting aluminum body and heatsink |
