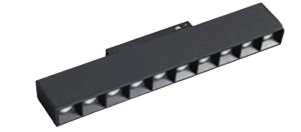

AES-LB10
LED Linear Light MAGNETIC SPOT FAMILY
IP20
10W
Features
Approvals
Approvals & Standards
Saudi Standard SASO 2902 | Energy Efficiency, Functionality & labeling requirements for lighting products -Part2- |
|---|---|
IECEE Certificate (1) | As per IEC60598-2-3:2002+A1:2011 IEC60598-1:2014+A1:2017 |
Power Supply approval marks(2) | UL/CSA/CE/ENEC/CCB/CCC |
Degree of Protection (IP) | IEC 60529:2013 |
Cutout & Dimensions
| MODEL | POWER | DIMENSION |
|---|---|---|
| AESLB10 | 10W | L172xW22xH25mm |
| AESLB20 | 20W | L341xW22xH25mm |
Product Description
Recessed LED down light with high quality aluminum body, Small and simple design to meet different requirement, with multiple beam angle choices, excellent heat dissipation capability. You can install it in: supermarket, stores, halls, Hotel, Kitchen, Meeting Room, Shopping Mall, etc....
TECHNICAL INFORMATION
| FAMILY | MAGNETIC SPOT |
|---|---|
| WATTAGE | 10W | 20W |
| CRI | 80 | 90 |
| CCT | 3000K | 4000K | 5000K |
| BEAM | 30° | 45° |
| LUMEN | 85lm/W |
| FINISH | White | Black |
| MATERIAL | Aluminum |
